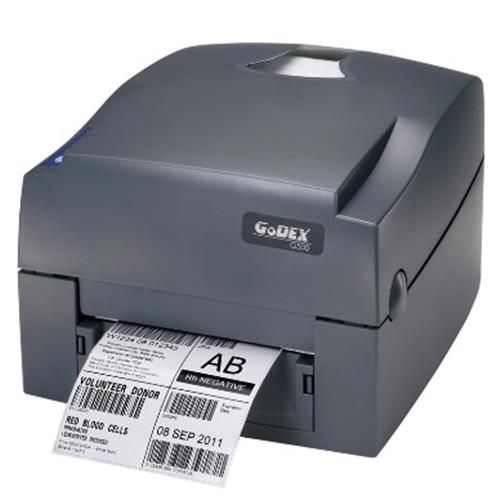

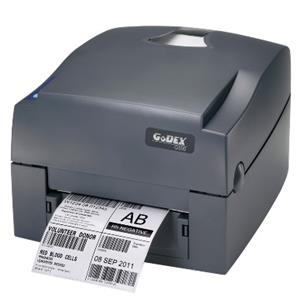

STAMPANTE X ETICHETTE GODEX G500 NERO

INTERFACCIA: USB, RS232(SERIALE), INTERNAL ETHERNET
LUNGHEZZA MAX DI STAMPA: 990 MM
LARGHEZZA MAX DI STAMPA: 108 MM
VELOCITÀ DI STAMPA MAX.: 127 MM/SEC
TIPO DI STAMPA: TRASFERIMENTO TERMICO , TERMICA DIRETTA
RISOLUZIONE: 203 DPI
MISURE RIBBON: 300 MT

Godex barcode label printer USB port Support stickers paper clothes hang tag G500u (203DPI)

Below label and ribbon sizes can use on this G500U printer, please click Below, all size can use it.

Size (width*Height*quantity)
Purchase
1. 40mm*30mm*1000pcs transfer label
2. 50mm*30mm*5000pcs transfer label
3. 60mm*50mm*2000pcs transfer label
4. 100mm*80mm*500pcs silver PET label
5. 110mm*300m Wax ribbon
6. 90mm*300m Mixture ribbon
7. 90mm*300mm Resin ribbon

Specifications
Print Method
Thermal Transfer / Direct Thermal
Resolution
203 dpi (8 dots/mm)
Print Speed
5IPS (127 mm/s)
Print Width
4.25" (108 mm)
Print Length
Min. 0.16" (4 mm)**; Max. 68" (1727 mm)
Memory
8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type
Adjustable reflective sensor. Fixed transmissive sensor, central aligned
Media
Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming
Width: 1" (25.4 mm) Min. - 4.64" (118 mm) Max.
Thickness: 0.003" (0.06 mm) Min. - 0.01" (0.25 mm) Max.
Label roll diameter: Max. 5" (127 mm)
Core diameter: 1", 1.5", 3" (25.4 mm, 38.1 mm, 76.2 mm)
Ribbon
Types: Wax, wax/resin, resin
Length: 981’ (300 m)
Width: 1.18" Min - 4.33" (30 mm - 110 mm) Max
Ribbon roll diameter.: 2.67" (68 mm)
Core diameter: 1" (25.4 mm)
Printer Language
EZPL, GEPL, GZPL auto switch
Software
Label design software: QLabel-IV (for EZPL only), GoLabel (for EZPL only)
Driver: Windows 2000, XP, Vista, 7, Windows Server 2003 & 2008
DLL: Windows 2000, XP and Vista

Resident Fonts
Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable
Download Fonts
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable

Barcodes
1-D Bar codes:
Code 39, Code 93, EAN 8 /13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM and GS1 DataBar
2-D Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code and Aztec code

Code Pages
CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255, 1257
Unicode (UTF8, UTF16)

Graphics
Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software

Interfaces
USB + Parallel Port

Control Panel
Two bi-color status-LEDs: Ready, Status
Control key: FEED

Power
Auto Switching 100-240VAC, 50-60Hz

Environment
Operation temperature: 41°F to 104°F (5°C to 40°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)

Humidity
Operation: 30-85%, non-condensing.
Storage: 10-90%, non-condensing.

Agency Approvals
CE(EMC), FCC Class A, CB, cUL, CCC

Dimension
Length: 11.2" (285 mm)
Height: 6.8" (171 mm)
Width: 8.9" (226 mm)

Weight
6 lbs (2.72Kg) ,excluding consumables

Options
Cutter Module
Label Dispenser
External label roll holder for 10" (250 mm) O.D. label rolls
External label rewinder
